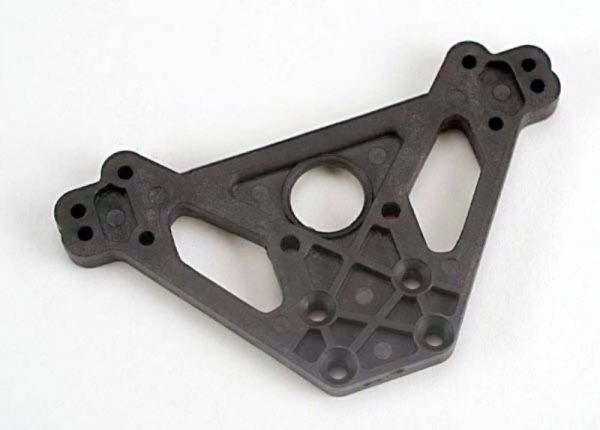

Traxxas 4317 Shock tower, rear 4-tec Electric Nitro 4-tec

This is the Rear Shock Tower for the Traxxas Nitro and Electric
4-Tec Four Wheel Drive On-Road Sedan.
This shock tower fastens to the Rear Side Plates #4824 (TRAC4824).
and supports the top section of each shock.

Replaces damaged shock towers.
Constructed of hardened plastic.
Two mounting holes per side for different damping rates.

One Rear Shock Tower for the Traxxas Nitro and Electric 4-Tec Four
Wheel Drive On-Road Sedan.

Fastening to side plates with four 3mm x10mm countersunk machine
screws. Attaching top section of shocks with 3mm x 20mm
countersunk machine screws.

Width: 3.36" (85mm)
Height: 1.96" (50mm)
Thickness: 0.24" (6mm)
JXS 9/11/01

&
