Traxxas 3375 VXL-3m Electronic Speed Control, Waterproof 1/16 E-Revo VXL

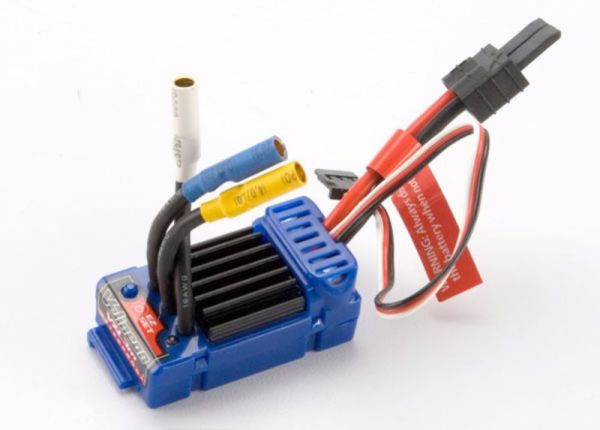

This is the Velineon VXL3m Electronic Speed Control from Traxxas.
brushless control
11.1V 3S LiPo battery capability
Low voltage detection
2 stage thermal protection
Waterproof
Multi-color LED
EZ-Set push button setup
One VXL3m Electronic Speed Control
Installation on the vehicle
Input Voltage: 6 to 12 cell NiMh, 2S to 3S LiPo
Motors: Sensorless brushless
Motor Limit: None
Continuous Current: 52A
Peak Current: 326A
BEC Voltage: 6.0V DC
Transistor Type: MOSFET
On-Resistance: 0.0005 ohms
PWM Frequency: 12, 000Hz
Motor Connectors: Traxxas 3.5mm bullet connectors
Motor/Battery Wiring: 16-Gauge
Thermal Protection: Two-Stage Thermal Shutdown
Weight: 38g (1.34oz)
