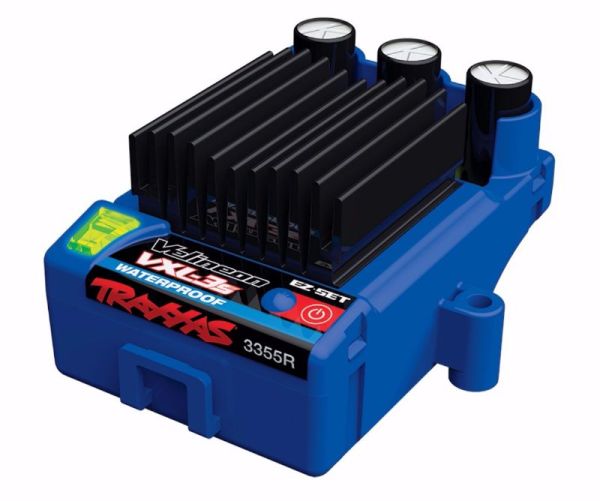

Traxxas 3355R Velineon VXL-3s Waterproof Electronic Speed Controller Slash Rustler VXL
Traxxas brand Traxxas VXL-3s Waterproof brushless Electronic Speed Control.
Auto detects brushed, brushless or sensored brushless motor types
Compatible with 4-cell NiCd or NiMh batteries up to 3S LiPo packs (11.1V)
EZ-Set(R) one-touch push-button set-up
Three drive profiles Sport, Race and Training mode
Locked rotor protection if vehicle is stuck or motor is bound
Battery over-voltage protection triggers failsafe if maximum input voltage is exceeded
Sensor phase detection protects against improperly wiring aftermarket sensored motors
Sensored motor backup protection switches to sensorless operation if motor sensor fails
Auxiliary fan output (fan not included)
Traxxas VXL-3s Electronic Speed Control with 12 gauge motor and battery cables, three preinstalled 3.5mm female bullet motor connectors, Traxxas High-Current male battery connector, universal receiver connector and instruction manual
Installing in vehicle and connecting to battery, receiver and motor
Input Voltage 4.8 - 11.1V (4-9 NiMh, 2S-3S LiPo)
Motor Compatibility: Brushed/ brushless /Sensorless brushless
Motor Limit: None
Continuous Current: 200A
Peak Current: 320A
BEC Current: 6.0V DC
Transistor Type: MOSFET
On-Resistance: 0.00075 ohms
PWM Frequency: 12, 000Hz
Thermal Protection: Two-Stage Thermal Shutdown
Weight: 3.84 oz (109g)
length: 2.19 (57mm)
width: 1.54 (39mm)
height: 1.3 (33mm) including heat sink
Brand | Traxxas |
---|---|
MPN | 3355R |
Part Type | ESC (Brushless) |
ESC Application | Car/Truck |
Motor Type | Brushless |
Motor Connection | Sensored/Sensorless |
Eligible for Free Shipping | No |
