Traxxas 3024R XL 2.5 Electronic Speed Control, waterproof 1/16 E-Revo VXL 1/16 Slash/Rally 4WD 1/16

In stock

SKU

TRA3024R

Be the first to review this product

$49.95

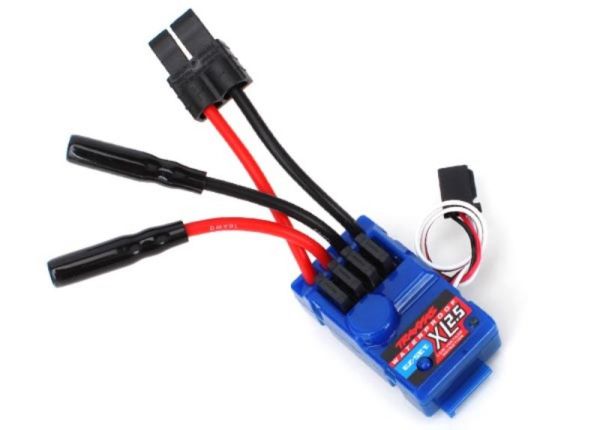

Traxxas brand Traxxas XL-2.5 Electronic Speed Control.

FEATURES:

Forward and reverse operation for 380 size brushed motors 10 turns
and above
Three driving profiles;
Sport Mode, 100% Forward, Brake, Reverse
Race Mode, 100% Forward, 100% Brake, No Reverse
Training Mode, 50% Forward, 100% Brake, 50% reverse
Waterproof design
2S LiPo compatible or 4-8 cell NiMh compatible
6.0V BEC (Battery Eliminator Circuitry)
EZ-Set push-button setup
Thermal shutdown protection

YOU WILL RECEIVE:

Traxxas XL-2.5 ESC with Traxxas Battery Connector, Female Bullet
Motor Connectors, Receiver Connector and Instructions

SPECIFICATIONS:

Input Voltage 4-8 cells (4.8-9.6V DC) OR 2S LiPo (7.4V)
Motor Limit: 10 turn and higher, 380 size brushed
BEC Voltage: 6.0V DC
Transistor Type: MOSFET
On-Resistance: 0.008 ohms
PWM Frequency: 2300Hz
Battery Connector: Traxxas High Current Connector
Motor Connectors: Female Bullet
Motor and Battery Wire Size: 16-gauge
Thermal Protection: Thermal Shutdown
Weight: 1.16oz (33g)

DIMENSIONS:

1.8 x 1.02 x 0.86 (46.7 x 26 x 21.8mm)
