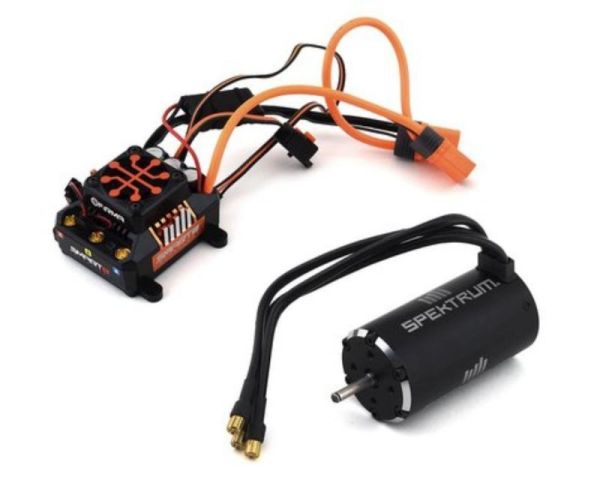

Spektrum RC SPMXSEMC06 Firma 160 Amp Sensorless Brushless Smart ESC & Motor Combo (1250Kv) (XSEMC06)

In stock
SKU
SPMXSEMC06
Views: 0
$349.99

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

This ESC comes bundled with a Spektrum Firma 1250Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.

Features:

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Waterproof
  • Multiple options for easy programming:
    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
  • Comes bundled with Spektrum Firma 1250Kv Brushless Motor
  • Compact for easy installation in most applications
  • Ready to install — no soldering required
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
Included In The Box:
  • (1) Spektrum™ Firma™ Smart ESC
  • (1) Spektrum™ Firma™ 1250Kv Brushless Motor
  • (1) Spektrum Smart sticker sheet
  • (1) Product Manual
Specifications:

Auto CutoffYes
Battery ConnectorIC5
Battery Input Lead10AWG Dual IC5, EC5 compatible
BECYes
BEC Continous Current5A
BEC TypeSwitch Mode
BEC Voltage6V
BrakesYes
Bushing Or BearingBearing
Cells4-8 cell LiPo
Connector Type6.5mm Bullet
Efficiency90%
ForwardYes
Low-Voltage Cutoff ProgrammableYes
Maximum Burst Current1050A
Motor Connector6.5mm Bullet
Motor DesignInrunner
Motor Output Lead6.5mm Female Bullets
Motor TypeBrushless
Number of Poles4
Outer Diameter1.9 in (49mm), motor
Output6300W
Overall Length3.3" (85mm), motor
Overload ProtectionYes
Product Height1.8" (44mm), ESC
Product Length2.7" (70mm), ESC
Product Width3.03" (77mm), ESC
ProgrammableYes
Recommended Speed ControlSpektrum Firma 160 Smart ESC
ReverseYes
RPM/Volt (Kv)1250Kv
Shaft Diameter3/16" (5mm)
Smart TechnologySmart ESC
Wire Gauge10 AWG
More Information
Brand Spektrum
MPN XSEMC06
Part Type Motor Combo
ESC Application Car/Truck
Motor Type Brushless
Motor Connection Sensored/Sensorless
Eligible for Free Shipping No
