Savox SH1357 Mini Size Coreless Digital Servo .07/34 (SH1357)

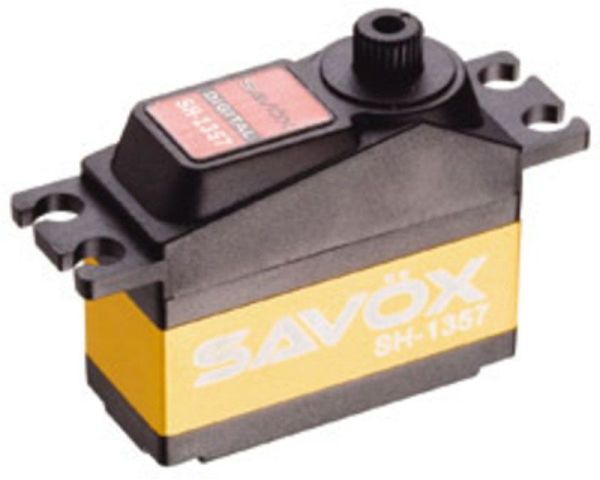

This is the Savox SH-1357 Super Speed Mini Digital Servo.
Features:
Light weight construction means less power consumptionThe coreless motor brings output performance to new levels and ensures smoother, faster, and more efficient operation. The metal case design not only looks awesome but also allows for cooler and smoother operating temps. Savox servos are totally green – from materials to production, these servos are environmentally friendly. Ideal as a rudder servo on 450 class helis, CCPM servo on 500 class helis, and steering for 1/12th scale surface vehicles.
Dimensions(mm): 35.0X15.0X29.2
Weight(g): 26.0
Speed(@4.8V sec/60): . 09
Torque(@4.8V oz-in): 26.4
Speed(@6.0V sec/60): . 07
Torque(@6.0V oz-in): 34.7
Gear: Industrial Plastic
Bearing: 2BB
Case: Aluminum
25 Tooth Spline is compatible with Futaba servo horns
Frequency: 250-333hz
Pulse Width Frequency: 1520






Dimensions(mm): 35.0X15.0X29.2
Weight(g): 26.0
Speed(@4.8V sec/60): . 09
Torque(@4.8V oz-in): 26.4
Speed(@6.0V sec/60): . 07
Torque(@6.0V oz-in): 34.7
Gear: Industrial Plastic
Bearing: 2BB
Case: Aluminum
Running current (at no load): 80 mA @ 4.8V
Running current (at no load): 100 mA @ 6.0V
Stall current (at locked): 800 mA @ 4.8V
Stall current (at locked): 1000 mA @ 6.0V
Idle current (at stopped): 6 mA @ 4.8V
Idle current (at stopped): 6 mA @ 6.0V
Limit angle: 210°±10°
Connector wire gauge: ＃26 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 110° (when1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 5 μsec
Rotating direction: Counterclockwise (when1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 154°(when800→2200 μsec)
