Savox SC0251MG Larger Standard Digital Servo .18/222

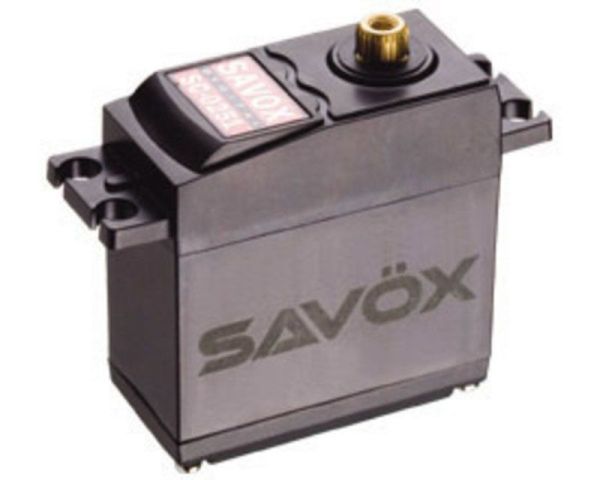

This is the Savox SC-0251 High Torque Metal Gear Digital Servo.
Features:
Precision metal gears form a strong and solid framework Strict production and quality control of plastic components ensures high performanceSavox servos are totally green – from materials to production, these servos are environmentally friendly. This high torque servo is great for crawlers, 1/8 scale
vehicles and 50 class airplanes.
Dimensions(mm): 40.7X19.6X42.4
Weight(g): 61.0
Speed(@4.8V sec/60): . 20
Torque(@4.8V oz-in): 180.5
Speed(@6.0V sec/60): . 18
Torque(@6.0V oz-in): 222.2
Gear: Metal
Bearing: 2BB
Case: Plastic
25 Tooth Spline is compatible with Futaba servo horns
Frequency: 200-250hz
Pulse Width Frequency: 1520






Dimensions(mm): 40.7X19.6X42.4
Weight(g): 61.0
Speed(@4.8V sec/60): . 20
Torque(@4.8V oz-in): 180.5
Speed(@6.0V sec/60): . 18
Torque(@6.0V oz-in): 222.2
Gear: Metal
Bearing: 2BB
Case: Plastic
25 Tooth Spline is compatible with Futaba servo horns
Frequency: 200-250hz
Pulse Width Frequency: 1520
Running current (at no load): 300mA @ 4.8V
Running current (at no load): 350mA @ 6.0V
Stall current (at locked): 2600 mA
Stall current (at locked): 3200 mA
Idle current (at stopped): 5 mA
Idle current (at stopped): 6 mA
Limit angle: 180° ± 10°
Connector wire gauge: ＃22 AWG
Connector wire length: 150 ± 5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital controller
Operating Travel: 120° (when1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 5 μsec
Rotating direction: Counterclockwise (when1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 165°(when800→2200 μsec)
Frequency: 200-250hz
Pulse Width Frequency: 1520
