Discontinued Savox SB2275MG High Voltage Brushless Digital Servo 0.048/138.9 @ 7.4v (SB2275MG)

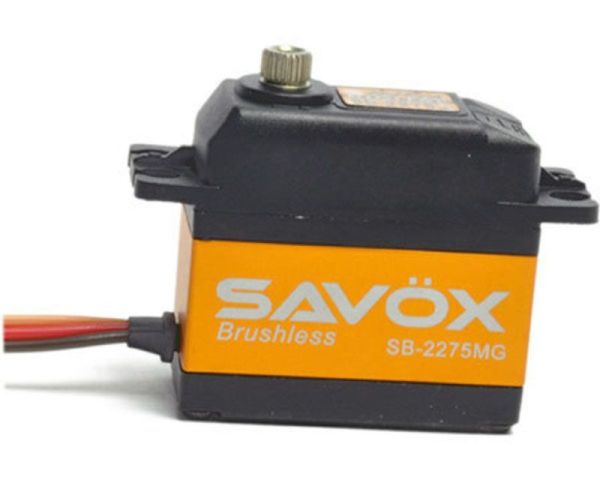

This is the Savox SB-2275MG High Voltage Lightning Speed Brushless Metal Gear Digital Servo.
Features:
Combines leading edge
technology with super high 12 bit (4096) resolution and metal gearset. Super light-weight. Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption. The aluminum case design not only looks good but also allows for cooler and smoother operating temps. Savox servos are totally green – from materials to production, these servos are environmentally friendly. Ideal for Gyro and Rudder servo. Also ideal for Heli Cyclic.
Dimensions(mm): 40.3x20.2x38.7
Weight(g): 66.0
Speed(@6.0V sec/60): . 06
Torque(@6.0V oz-in): 69.4
Speed(@7.4V sec/60): . 048
Torque(@7.4V oz-in):138.9
Gear: Metal
Bearing: 2BB
Case: Aluminum
25 Tooth Spline is compatible with Futaba servo horns
Frequency: 250-333hz
Pulse Width Frequency: 1520
| Brand | Savox |
|---|---|
| MPN | SB2275MG |
| Part Type | Servos |
| Eligible for Free Shipping | No |
