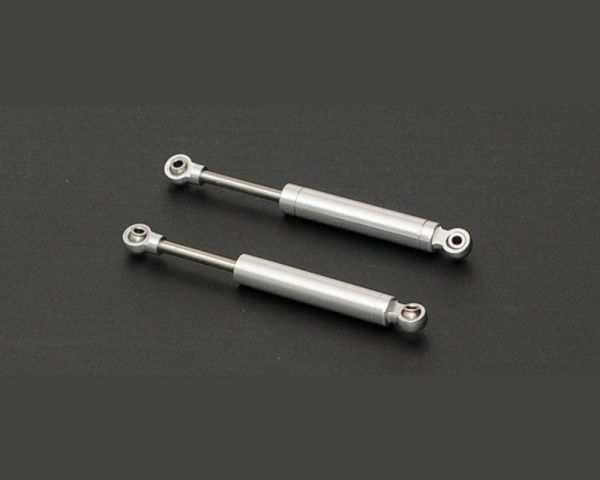

RC4WD Z-D0001 Ultimate Scale Shocks 90mm Silver (2)
RC4WD 90mm Ultimate Scale Shocks for a scale look and function on most 1/10th scale vehicles
- CNC machined aluminum construction
- Heat treated steel internal coil spring (Super soft)
- Steel pivot balls with brass bushings
- Natural aluminum finish
- Oil-less design
- Double seal bottom end
- Two (2) assembled shocks
- Weight: 12g (0.42oz)
- Hole-to-hole (Compressed): 66.5mm (2.62 inch)
- Hole-to-hole (Extended): 91.6mm (3.61 inch)
- Overall length: 100.4mm (3.95 inch)
- Travel length: 25.1mm (0.99 inch)
- Shock body diameter: 8.8mm (0.35inch)
- Shaft diameter: 3.0mm (0.12inch)
- Pivot ball hole: 3.0mm (0.12 inch)
These shocks do not use oil. Use only a small amount of oil to keep the shaft lubricated. These shocks have very fine shock cap threads. Please exercise careful attention while installing the shock caps to avoid cross-threading and stripping the threads.
Brand | RC4WD |
---|---|
MPN | Z-D0001 |
Part Type | Shocks |
Eligible for Free Shipping | No |
-
