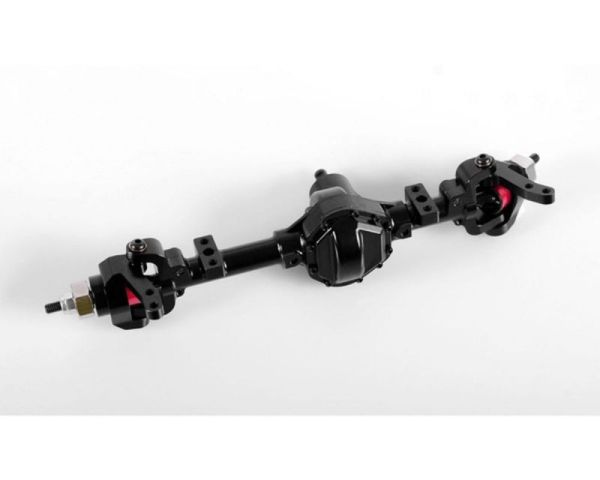

RC4WD Z-A0048 K44 Ultimate Scale Front Axle Terrain (Z-A0048)

This is the best reproduction to date on a Scale Axle. The K44 Axles have been designed from the ground up with input from some of the top scale builders in the world. With smaller Axle tubes, high steer knuckles, and many more features never before found on a set of Radio Control scale axles. RC4WD keeps pushing the limits on scale items and this new axle is a perfect example. These new K44 Axles will work on Tamiya's High lift series trucks when using the leaf spring setup. They are a direct bolt up. The will also work with any chassis that uses our D40 and D35 Axle, when using the leaf spring setup. K44's when combined with the 4 link mount (Z-S0133) can be made to work with most common chassis on the market, including the SCX10 chassis. K44 Axle main features

CNC MachinedSmooth Black FinishWidth: 176mm (outside Hex to outside Hex with 6mm Hex) 166mm pin to pinHex Thickness: 6mm12mm Wheel HexGear Ratio: 3:1Leaf Perch mounts: 79mm apartMounts direct to any Tamiya High Lift Series TruckMounts direct to any Trailfinder Chassis with Leaf SpringsIncludes XVD'sPumpkin Height: 35mmHigh Clearance KnucklesAxle Tube Diameter: 10mmDiff Screw size: 1.6mmDesigned and Manufactured by RC4WDDesigned for 1/10 TrucksHex to Hex Width: 176 mm / 6.92"Pin to Pin Width: 166mm / 6.53"Pumpkin Height: 35mm / 1.37"Leaf Mount Width: 79mm / 3.11"Output Shaft OD: 5 mm / 0.19"12mm Steel Wheel Hex
Weight: 168g / 5.95oz

NOTES:

While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed. For complete truck you will need 2 of this product, or one of this part and one rear straight Axle.
