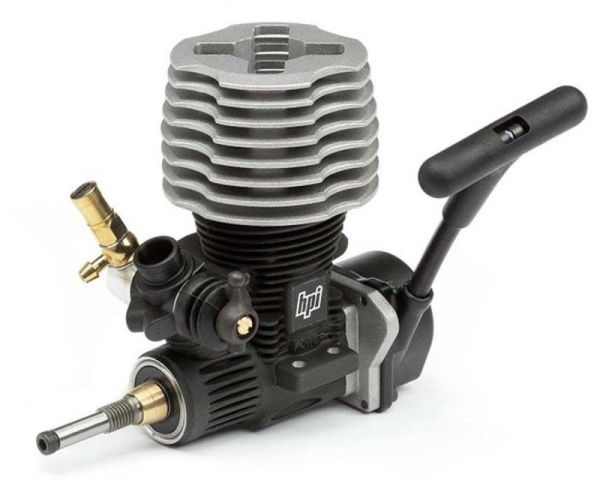

HPI 107824 Nitro Star G3.0 HO Engine with Pull Start

HPI Racing brand HPI Nitro Star G3.0 High Output Engine with Pull Starter.

FEATURES:

Finned black coated crankcase for added strength and to help cool the engine. Composite body slide valve carburetor with 7mm bore
Side exhaust
SG crankshaft
Two year limited warranty beginning at date of purchase

YOU WILL RECEIVE:

G3.0 High Output Engine with Pull Starter, Carburetor, R5 Cold Glow Plug, Foam Air Filter, three Zip Ties and Instructions

REQUIREMENTS:

Fuel: Car blend with 20-25% nitro content
Track Equipment: Glow starter, fuel tubing, glow plug wrench

SPECIFICATIONS:

Displacement: .18 cu in (2.95cc)
Bore: 16.8mm
Stroke: 13.6mm
RPM: 30,000
Practical RPM: 6,500 - 32,000
Power: 2.2 ps/kw
Carburetor Settings:
High Speed Needle, 1-2/2 turns clockwise from flush

Idle Screw: Set throttle trim on transmitter so that throttle is in neutral position, turn screw counter-clockwise to reduce idle speed, or clockwise to increase idle speed. Set idle speed high enough to keep engine running smoothly, but not high enough to engage the clutch.

Low Speed Needle: No adjustment recommended. For increased performance, set after high-speed needle is adjusted. Turn needle in 1/8 turn increments for better bottom end throttle response. Caution-never turn in more than 2 turns from flush. This will cause engine to run too lean and will result in damage

Distance Between Mounting Holes Same Side: 0.83 (21mm)
Distance Between Mounting Holes Opposite Side: 1.2 (30mm)
Height Bottom of Mounting Tabs to Top of Cylinder Head: 3.0 (76.9mm)
Width at Mounting Tabs: 1.6 (40mm)
Width of Crankcase Below Mounting Tabs: 0.99 (25.1mm)
Distance from Front Bearing to End of Crankshaft: 1.1 (29mm)
Distance from Pull Start to Front Bearing: 2.9 (75.3mm)
Distance from Pull Start to End of Crankshaft: 4.2 (107mm)
Distance from Center of Engine to Front Bearing: 1.5 (37.2mm)
Distance from Center of Engine to Pull Start: 1.5 (39mm)
