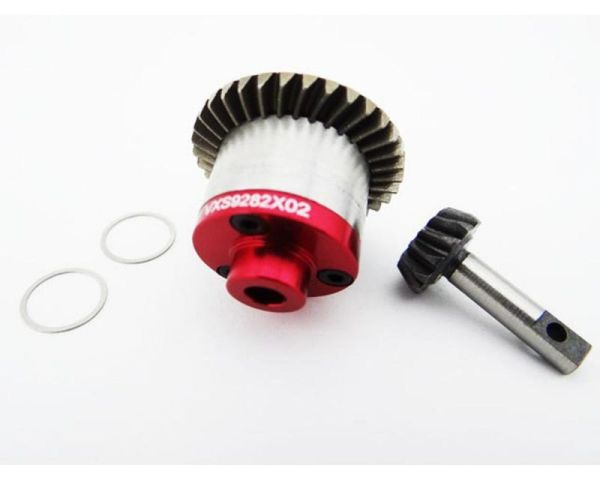

Traxxas 1/16 Revo or Slash CNC Spiral Bevel Gear by Hot Racing VXS9282X02
Hot Racing steel helical spiral differential gear set for Traxxas 1/16 4X4 vehicles, including the 1/16 E-Revo, 1/16 Slash 4X4, and 1/16 Summit. This set is compatible with the front or rear differentials. - CNC machined aluminum and hardened high carbon steel construction
- Aluminum carrier cover plate is anodized red
- Precision machined helical spiral cut gears offer inherently greater
strength and smooth operation than the factory bevel cut gears
- One (1) steel 13T pinion gear
- One (1) steel carrier
- One (1) aluminum carrier cover plate
- Two (2) carrier bearing shims to use as needed
- Two sets per vehicle
- Reuses Traxxas 7082 internal spider and carrier gears, as well as the output shaft seal and outdrives from the original differential
- Installation may require shimming using the included shims for proper gear mesh. The gears should run freely without too much play and without binding.
- Use removable thread lock (e. g. blue Loctite) on carrier screws
- Differential grease
- Carrier width: ~23mm
- Carrier bearing boss diameter: 8mm
- Pinion length: ~19.5mm
- Does not include inner differential gears.
- Replaces Traxxas 7079 ring and pinion and 7080 carrier cover plates (except for the output shaft seal)
- Shimming the differential correctly is an important step in building the perfect differential. If needed more shims may be purchased via Hot Racing part number W8X.
FEATURES:
- Aluminum carrier cover plate is anodized red
- Precision machined helical spiral cut gears offer inherently greater
strength and smooth operation than the factory bevel cut gears
YOU WILL RECEIVE:
- One (1) steel 34T ring gear- One (1) steel 13T pinion gear
- One (1) steel carrier
- One (1) aluminum carrier cover plate
- Two (2) carrier bearing shims to use as needed
REQUIREMENTS:
- Reuses Traxxas 7082 internal spider and carrier gears, as well as the output shaft seal and outdrives from the original differential
- Installation may require shimming using the included shims for proper gear mesh. The gears should run freely without too much play and without binding.
- Use removable thread lock (e. g. blue Loctite) on carrier screws
- Differential grease
SPECIFICATIONS:
- Carrier bearing boss diameter: 8mm
- Pinion length: ~19.5mm
COMMENTS:
- Replaces Traxxas 7079 ring and pinion and 7080 carrier cover plates (except for the output shaft seal)
- Shimming the differential correctly is an important step in building the perfect differential. If needed more shims may be purchased via Hot Racing part number W8X.
Brand | Hot Racing |
---|---|
MPN | VXS9282X02 |
Part Type | Diff Gears |
