Hot Racing 100mm Blue Internal Spring Air Shocks, Rock Crawler Projects TD100T06 (TD100T06)

Hot Racing 100mm internal spring air damper shock set for rock crawlers or other custom projects
- CNC machined aluminum shock bodies, black anodized
- CNC machined aluminum upper shock cap with o-ring seal, blue anodized
- CNC machined aluminum lower shock cap with shock shaft guide, blue anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks

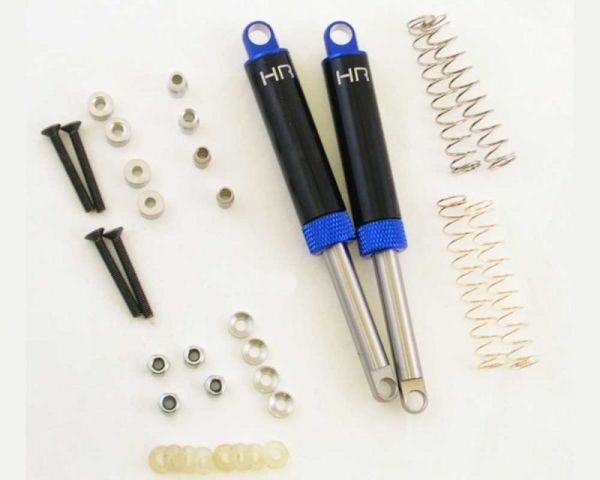

- Two (2) assembled shocks
- Two (2) gold (soft) springs
- Two (2) black (medium) springs
- Two (2) silver (stiff) springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Four (4) 5x7mm offset spacers
- Four (4) 3mm countersunk washers
- Four (4) 3x25mm flat head cap screws
- Eight (8) 3mm o-rings
- Four (4) lock nuts
- Installation on vehicle
- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness
- Extended center to center length: 100mm (3.9 inch)
- Compressed center to center length: 68mm (2.7 inch)
- Overall length: 108mm (4.3 inch)
- Body diameter: 13mm (0.5 inch)
- Shaft diameter: 7mm (0.3 inch)
- Available colors include: Black (TD100T01), Red (TD100T02), Green (TD100T05), Blue (TD100T06), and Silver (TD100T08)
- Replacement internal springs are Hot Racing RTD100P
- Replacement o-rings are Hot Racing RTD48RR
