Hot Racing AON12M01 ALUMINUM HD GEARBOX CASE BULKHEAD for ARRMA 6S Kraton Notorious

In stock
SKU
HRAAON12M01
Views: 0
$87.88

Hot Racing aluminum gearbox case With HD out put bearing Now updated to fit all Arrma 6s
See vehicle model compatibility in comments below.
FEATURES:
- Stronger and and stiffer assembly
- Upgrades the stock 5x11x4mm unsealed outer pinion bearing with an oversized 5x13x4mm sealed bearing for a stiffer and stronger drive train
- CNC machined aluminum construction
- Anodized black with machine chamfered edges
- Fits both the front or rear
- Direct fit hop up requires no modification for use

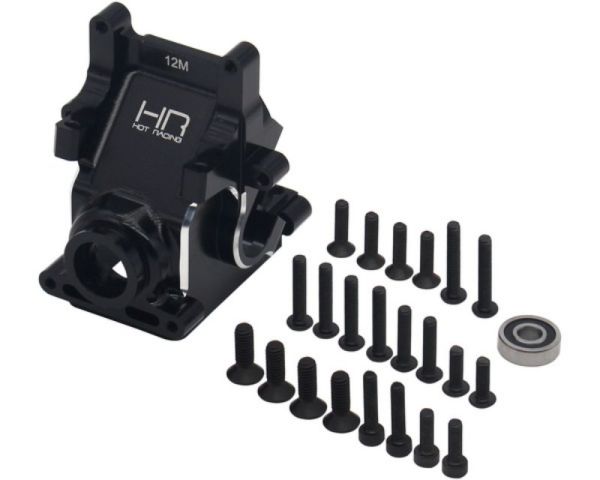

YOU WILL RECEIVE:
- One (1) gear box case main body
- One (1) 5x13x4mm black rubber sealed ball bearing
- Hardware
REQUIREMENTS:
- All other parts besides the lower gearbox case, including the stock 8x19x6mm inner pinion bearing
- Assembly and installation per vehicle manual
- Medium thread lock (blue threadlocking compound) on screws
COMMENTS:
- Replaces factory lower gearbox case from Arrma AR310427 or AR310854
- Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrmas website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
- 1/7 Felony ARA7617V2T1, ARA7617V2T2
- 1/7 Infraction ARA7615V2T1, ARA7615V2T2
- Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue) ARA8608V5
- LimitLess ARA109011
- Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
- Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silv/org)
- Senton: AR106007, AR102654, AR102673
- Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
- Typhon: AR106001, AR106013, AR106028, ARA106046

More Information
Brand Hot Racing
MPN AON12M01
Part Type Bulkheads
