Castle Creations 060-0071-00 4 Pole Sensored BL Motor 1406-3800Kv

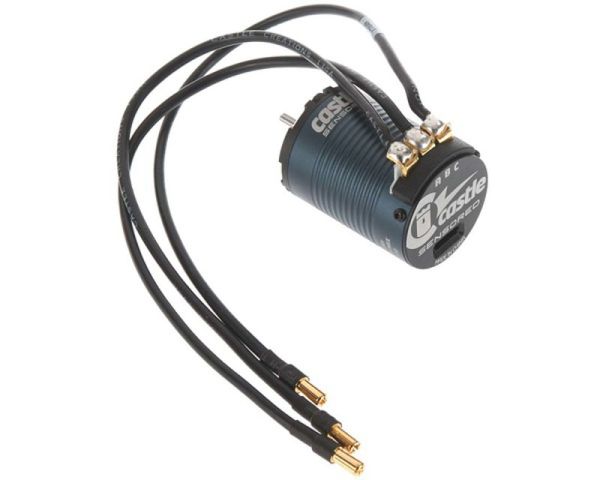

This is the Castle Creations 1406-3800Kv brushless Sensored Motor.
Ideal for 1/10 scale low speed rock crawlers and trail runners
weighing less than 8lbs (3.62kg) and powered by 2-3S LiPo
batteries with appropriate gearing
ROAR standard sensor port and labeled connections
SMARTSENSE uses sensors to provide smooth starts, excellent torque
and low speed driveability
CNC machined 6061-T6 aluminum can, slate gray in color
High performance 0.2mm steel lamination stacked stator
High strength 180C grade neodymium sintered magnets with para-aramid synthetic fiber wrap
Oversize NMB grade ball bearings
Rebuildable
1406-3800Kv brushless Sensored Motor with Sensor Wire
Three 4mm Female Castle Bullet Connectors
ESC such as the Castle Creations Mamba Max Pro, Mamba X and Mamba
Micro X
Input Voltage Range: 2-3S LiPo
Kv Rating: 3800
Max RPM: 100.000
Can length: 1.9" (49.5mm)
Can diameter: 1.4" (36mm)
Weight: 6.9oz (197g) with wires
Shaft diameter: 1/8" (3.17mm)
Shaft length: 0.59" (15mm)
Mounting Hole M3 @ 25mm
Wire Lead: Castle 13 AWG silicone insulated wire
Connectors: 4mm male Castle Bullet Connectors
