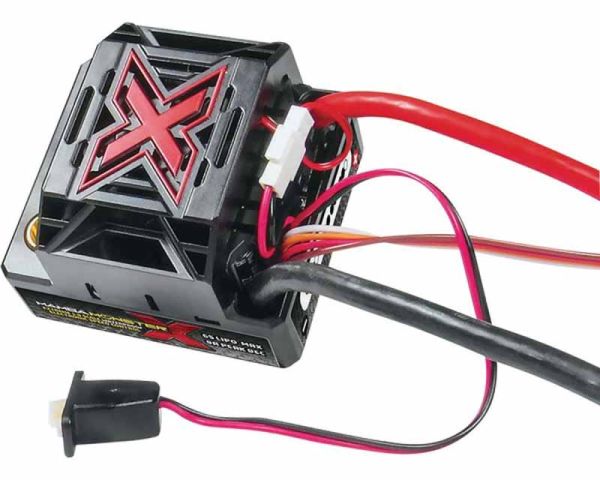

Castle Creations 010-0145-00 Mamba Monster X Waterproof Electronic Speed Control (1/8 Scale)
Castle Creations brand Castle Creations Mamba Monster X Waterproof Electronic Speed Control.
- For 1/8 scale buggies, truggies and on-road vehicles, and 1/10 scale monster trucks weighing up to 15lbs (6.8kg)
- 2S-6S LiPo compatible
- Adjustable BEC (battery eliminator circuit) 5.5V, 6.0V, 7.5V, or 8.0V 8A Peak), default 5.5V
- Castle Link Adjustable settings include; Brake/Reverse Type, LiPo Cutoff Voltage, Brake Amount, Drag Brake, Motor Type
- Programmable Auxiliary Wire (AUX) allows adjustments to several settings such as torque control and max throttle from a compatible transmitter
- Sensored motor capable with purchase of optional (not included)
- Sensor harness from Castle Creations
- Telemetry ready with purchase of Castle Creations S. BUS Telemetry Link
- One year limited warranty through Castle Creations beginning at dateof purchase
- Compatible Motor and LiPo Battery
- Battery Connectors, Castle Creations 6.5mm are recommended
- Input Voltage Range: Min. 2S LiPo, Max. 6S, 25.2V BEC - Adjustable: 5.5V or 7.5V (2A Peak), default 5.5V
- Brake: Proportional
- Reversible: Yes, with lockout
- On/Off Switch: Yes
- Weight: 3.91oz (111.1g) with wires
- Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove
dirt or corrosives, then fully dry unit. Cooling fan is not waterproof and must be removed prior driving in wet conditions.
FEATURES:
- 2S-6S LiPo compatible
- Adjustable BEC (battery eliminator circuit) 5.5V, 6.0V, 7.5V, or 8.0V 8A Peak), default 5.5V
- Castle Link Adjustable settings include; Brake/Reverse Type, LiPo Cutoff Voltage, Brake Amount, Drag Brake, Motor Type
- Programmable Auxiliary Wire (AUX) allows adjustments to several settings such as torque control and max throttle from a compatible transmitter
- Sensored motor capable with purchase of optional (not included)
- Sensor harness from Castle Creations
- Telemetry ready with purchase of Castle Creations S. BUS Telemetry Link
- One year limited warranty through Castle Creations beginning at dateof purchase
YOU WILL RECEIVE:
- Castle Creations Mamba Monster X ESC with On/Off Switch, pretinned Battery Leads, Receiver Connector, Female Motor Connectors, 30mm Cooling Fan and Instruction BookletREQUIREMENTS:
- Battery Connectors, Castle Creations 6.5mm are recommended
SPECIFICATIONS:
SPECIFICATIONS:
- Brake: Proportional
- Reversible: Yes, with lockout
- On/Off Switch: Yes
DIMENSIONS:
- 2.08 x 1.9 (53 x 49mm)- Weight: 3.91oz (111.1g) with wires
COMMENTS:
dirt or corrosives, then fully dry unit. Cooling fan is not waterproof and must be removed prior driving in wet conditions.
Brand | Castle Creations |
---|---|
MPN | 010014500 |
Part Type | ESC (Brushless) |
ESC Application | Car/Truck |
Motor Type | Brushless |
Motor Connection | Sensored/Sensorless |
