Arrma ARA390288 Mega Brushed 2S ESC for Granite Senton Typhon 4x4 (AR390288)

OVERVIEW:

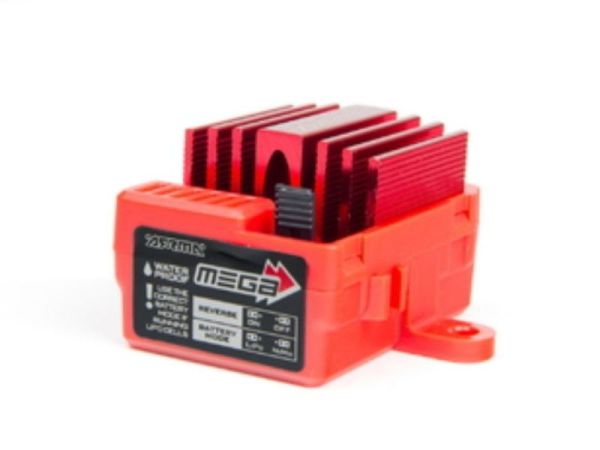

This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.
FEATURES:
Fitted with reliable IC3 connector - Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions - Cool-looking integrated red anodized heatsink for increased heat dissipation - Durable motor and battery connection cables for safe and reliable power transfer - Waterproof power switch - Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit - Etched 'ARRMA' livery for cool looks and quality assurance
| Battery usage | 7.2v (6 Cell) NiMh Stick Pack, 8.4v (7 Cell) NiMh Stick Pack, 7.4V (2S) Lipo |
| Low Voltage Cut-Off (LVC) | 3.2V per cell |
| Thermal Protection Temperature | 95°C / 203°F |
| BEC Voltage | 5V |
| BEC Current | 2A |
| ESC Length | 47mm / 1.85" |
| ESC Height | 21mm / 0.83" |
| ESC Width | 34mm / 1.34" |
| ESC Weight | 70g / 2.47oz |
| Receiver Wire Length | 160mm / 6.3" |
| Battery Wire Length | 90mm / 3.54" |
INCLUDES:
1 x ARRMA MEGA Brushed ESC
| Brand | ARRMA |
|---|---|
| MPN | AR390288 |
| Part Type | ESC (FWD/REV) |
| Eligible for Free Shipping | No |
