Arrma AR390229 BLX85 Brushless 60A ESC Granite Fury Raider BLX

This is the Arrma BLX85 brushless ESC.

Gold plated bullet connectors for ultimate power conductivity heat sink helps to dissipate heat during extreme operation
Durable case with hold down tabs for secure fitting in chassis
Waterproof switch
LiPo and NiMh cutoff to protect batteries
6V BEC
Forward, brake, and reverse throttle modes
T-connector for battery

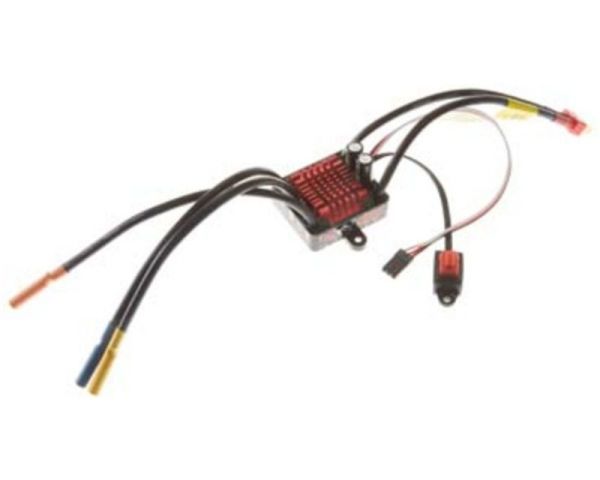

Arrma BLX85 brushless ESC with all Connectors

Continuous Current Capacity: 60A
Compatible Batteries: 6 - 7 Cell NiMh (7.2 to 8.4V), 2 - 3S LiPo (7.4 - 11.1V)
Low Voltage Cutoff: 3.3V per cell
Thermal Protection Temperature 221F (105C)
Over-Voltage Protection: Over 3S LiPo (11.1V)
brushless Motor Limit: 5000Kv
Recommended Battery Specification:
4000mAh - 25C minimum 2S or 3S battery pack
BEC Voltage: 6V
BEC Current: 3A
Burst Current: 420A
length: 1.69" (43mm)
Height 1.18" (30mm)
width: 2.15" (54.5mm)
Weight 3.49oz (99g)
Receiver Wire Length 6.69" (170mm)
Battery Wire Length 5.91" (150mm)
Motor Wire length: 6.3" (160mm) including connector
Switch length: 0.83" (21mm)
Switch width: 0.52" (13.3mm)
Switch height: 0.63" (16mm)
Bullet Connector Size 0.16" (4mm)
Wire Size: 12AWG
Battery Connector: T-connector
